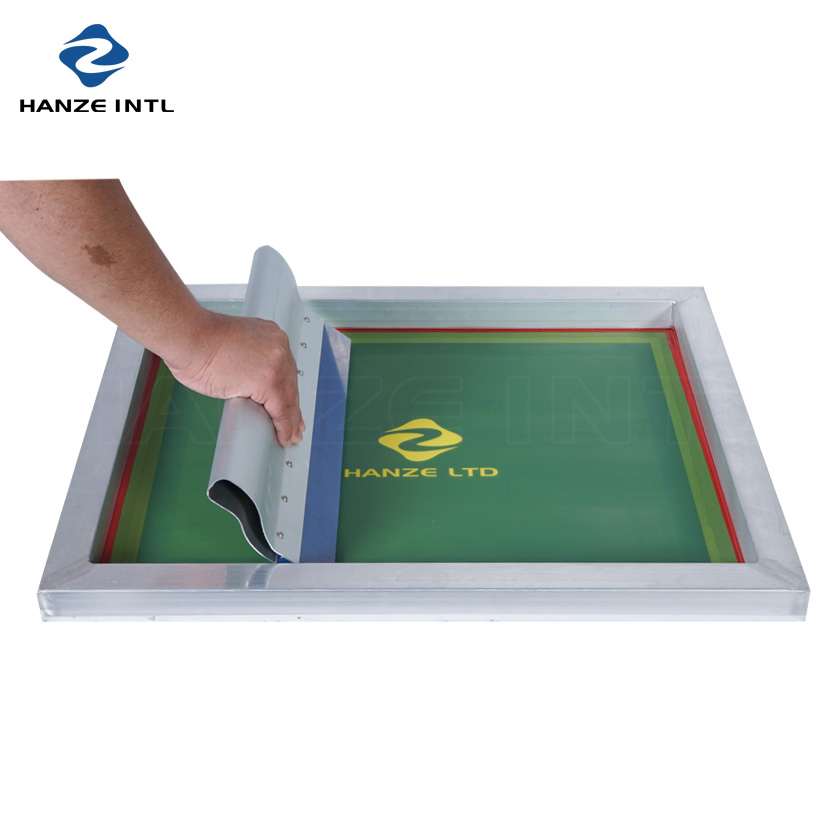

Based on extensive industry experience and market requirements, these high-quality aluminum frames are designed to meet diverse printing needs. Featuring high strength and precision, we offer over forty types of cross profiles suitable for various professional trades.
These frames are widely compatible with M&R, TAS, MHM, ROQ, ASPE, and both manual and automatic textile screen printing machines.

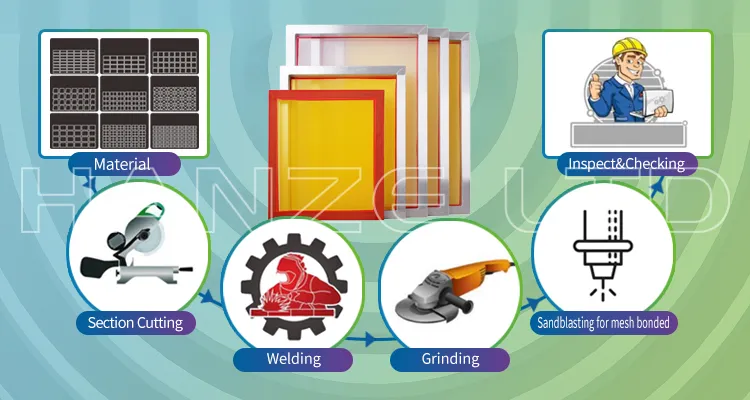

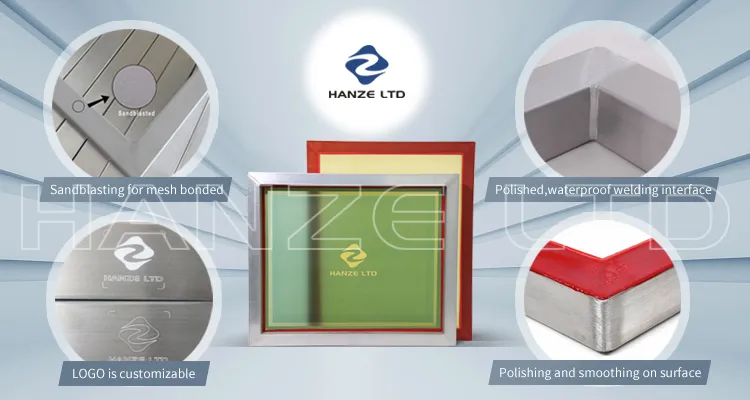

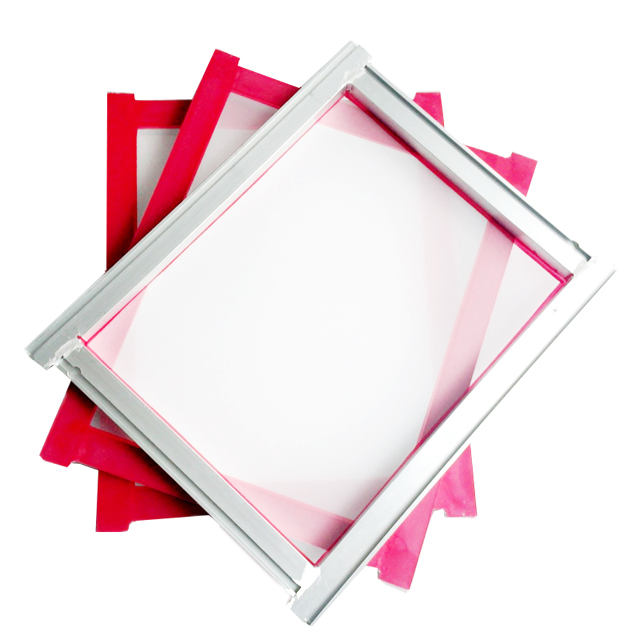

Our aluminum frames are precision-cut from 6063T5 alloy using a variety of extrusion profiles. Each profile is engineered to accommodate specific machine specifications, providing the necessary strength for high-tension and extra-large frame requirements. Some extrusions can be "pre-shaped" to handle extreme tension loads effectively.
| Outside Diameter (Inch) | Profile (Inch) | Max Image Size |
|---|---|---|
| 10" X 14" | 1" X 1" | 5" X 8" |
| 12.5" X 17.5" | 1" X 1" | 7" X 12" |
| 14.5" X 17.5" | 1" X 1" | 9" X 12" |
| 12" X 24" | 1-3/8" X 1-3/8" | 6" X 15" |
| 18" X 20" | 1-3/8" X 1-3/8" | 11" X 12" |
| 20" X 24" | 1-3/8" X 1-3/8" | 13" X 16" |
| 14" X 30" | 1-1/2" X 1-1/2" | 8" X 22" |
| 18" X 36" | 1-1/2" X 1-1/2" | 11" X 28" |
| 23" X 31" | 1-1/2" X 1-1/2" | 16" X 24" |
| 25" X 36" | 1-1/2" X 1-1/2" | 18" X 28" |
| 30" X 43" | 1-1/2" X 1-1/2" | 23" X 35" |
| 36" X 48" | 1-1/2" X 2" | 28" X 38" |
| 42" X 54" | 1-1/2" X 2" | 34" X 44" |

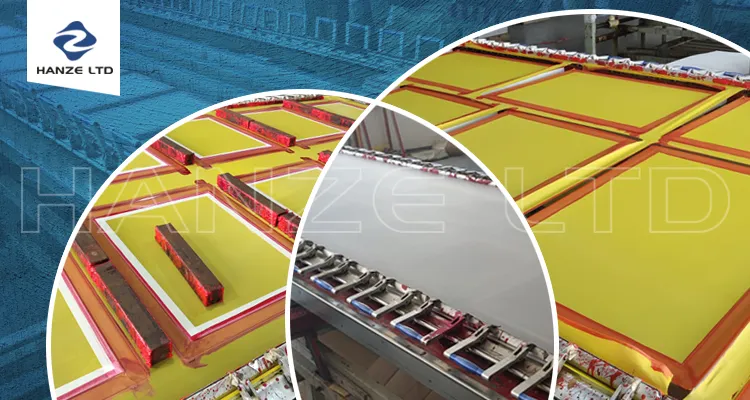

Our automatic stretching machines provide stable and balanced tension across the entire screen surface.

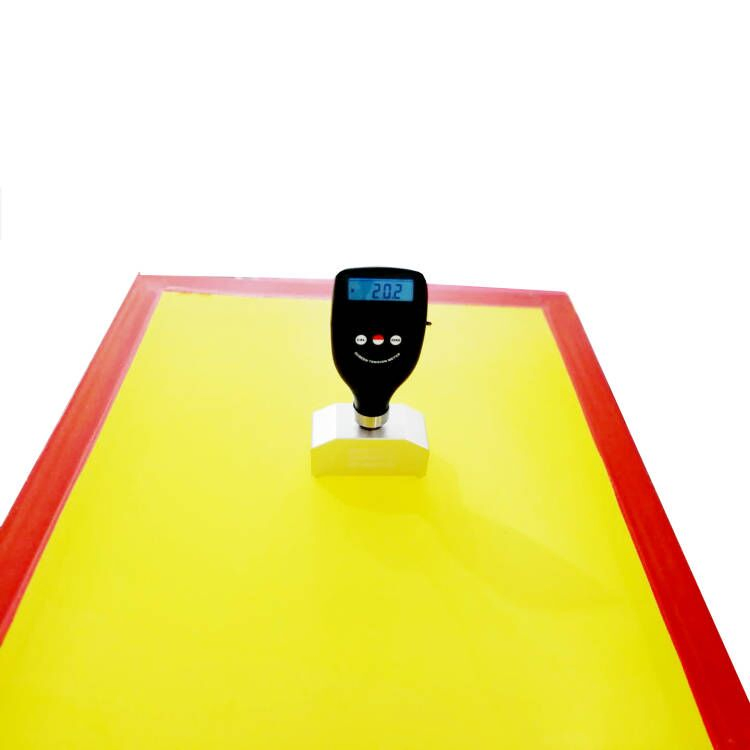

Advantages of high tension screens:

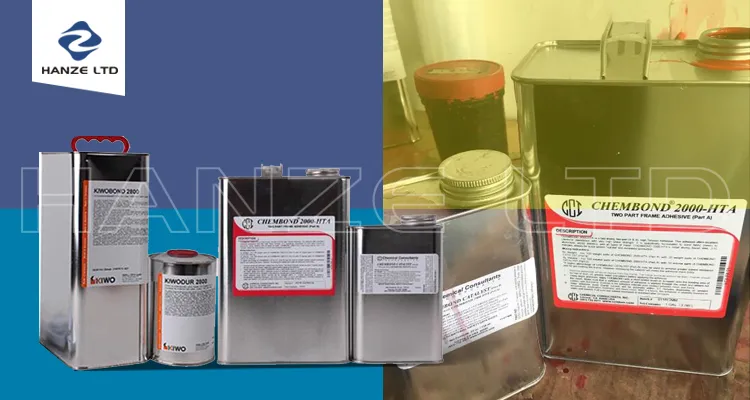

Adhesive Quality: We use the highest chemical resistance glues, including CHEMBOND® 2000-H.T.A. (USA) and KIWO (Germany).

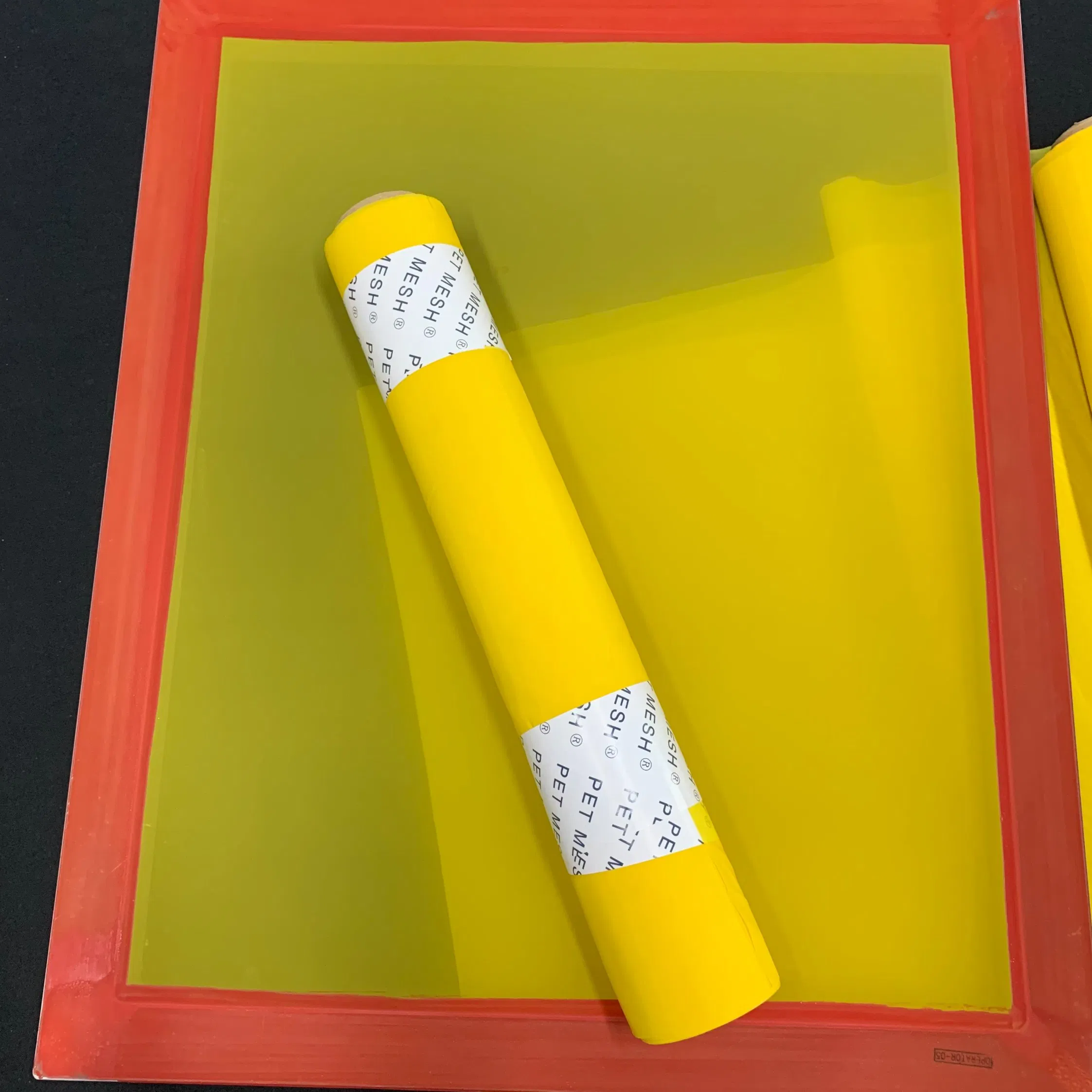

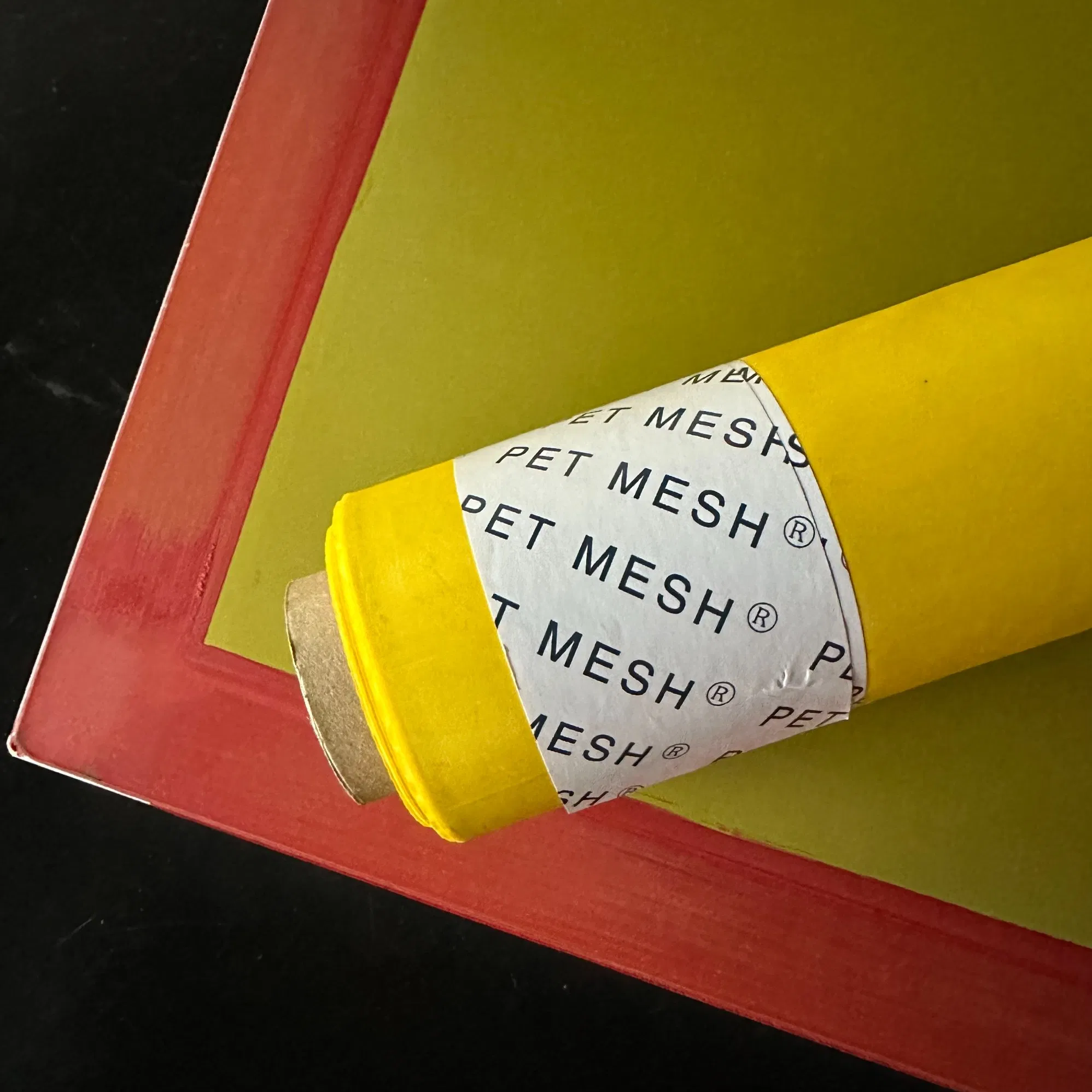

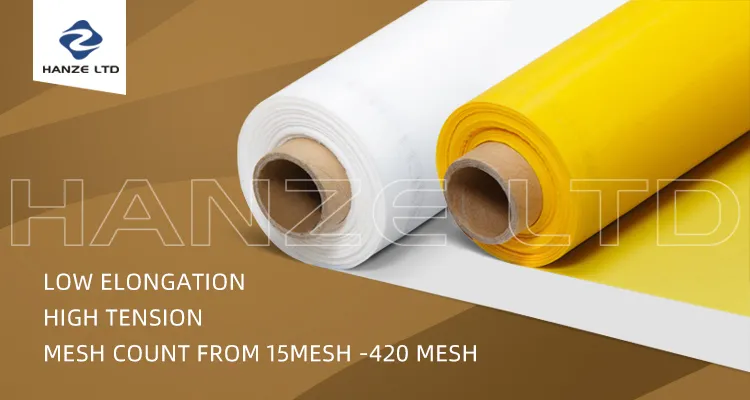

Stretched with top-quality monofilament polyester mesh, available from 15 to 420 mesh counts:
